Semi-automatic rubber roller cylindrical grinder

Machine Features：

★ This machine tool is mainly suitable for cylindrical grinding of small and medium-sized steel core rubber roller shafts

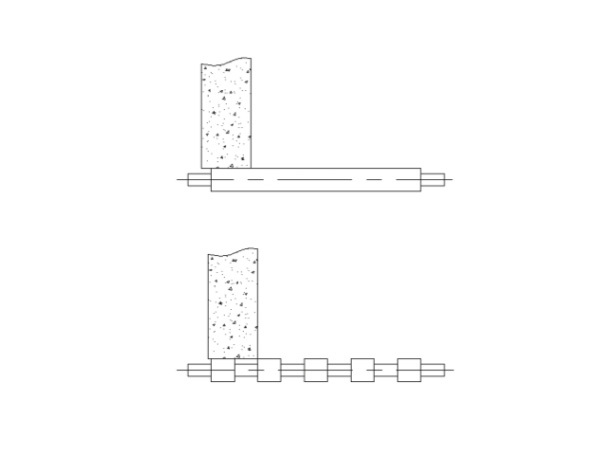

★ In addition to manual advance and retreat of the machine tool table and grinding wheel frame, it can also be driven hydraulically, and has a variety of semi-automatic workpiece cutting and semi-automatic longitudinal grinding.

★ The grinding wheel spindle of this machine tool adopts three-piece dynamic pressure bearing, which has high rotation precision and long service life.

★ Grinding wheel adopts special grinding wheel for rubber roller for grinding

★ The machine tool control adopts PC control, with stable performance

TECHNICAL SPECIFICATIONS

Height of center 100mm

Distance between centers 370mm

Diameter to be ground φ5-φ125mm

Max. length to be ground 350 mm

Max. weigth of workpiece 10kg

Table rotation angle ± 7°

Rotation angle of headstock ± 45°

Rotation angle of grinding wheel rack ± 180°

Dimensionof Max. grinding wheel φ300×（20-40）×φ127mm

Linear speed of grinding wheel ≤35m/s

Motor power of grinding wheel rack 2.2kw

Outline dimension of machine tool

2400×1160×1300mm

Net weight 2100 Kg

Gross weight 2200 Kg

Layout plan

1. The height of the host is 1300mm

2. The machine tool should be installed on a solid foundation away from the vibration source, and the installation level should be adjusted with the 3 pads under the machine tool. Check the levelness of the machine with a spirit level. Vertical ≤ 0.04/1000, horizontal ≤ 0.04/1000.
