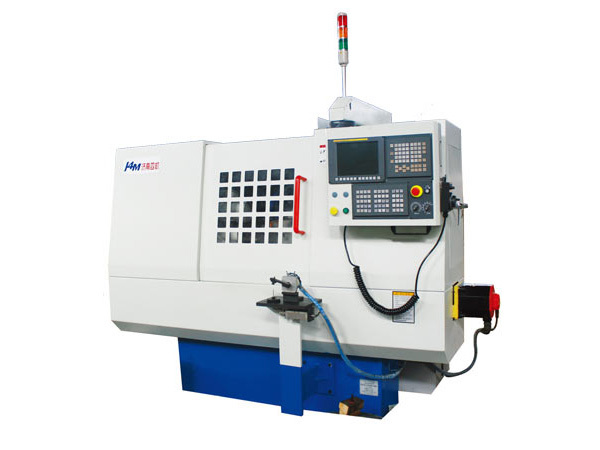

CNC oil needle lift with grinding forming grinding machine
★This series of machine tools are high-efficiency grinding machines for grinding small and medium-sized internal combustion engines and engine oil needle lifts.
★This series of machine tools adopts imported two-axis linkage numerical control system, built-in PLC and liquid crystal display.
★Detect the coupler needle valve body outside the machine tool, after detecting the standard position difference of the coupler needle valve body, transmit the position difference to the numerical control system, and pass the crossover
The flow servo motor drives the servo shaft to adjust the grinding lift to the table.
★The grinding wheel frame motor adopts AC frequency conversion speed regulation device, which can basically realize constant linear speed grinding.
★The machine tool is equipped with a full protective cover, and the operation is safe and reliable.
Height of center 140mm
Max.diameter to be ground φ80mm
Max. length to be ground 40mm
Max. weigth of workpiece 15kg
Dimension of Max. grinding wheel φ500×40×φ203mm
Linear speed of grinding wheel (m/s) 45m/s
Main motor power 5.5kw
Total capacity of motor 13.5kw

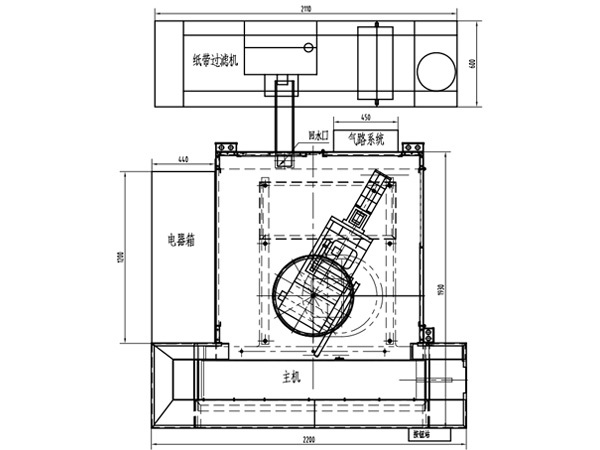

Overall dimensions 2500×2200×1750mm
Net weight 3800Kg
WORKING ACCURACY（Grinding national standard test parts）
Axial lift tolerance 0.02 mm
Surface roughness Ra0.4μm
