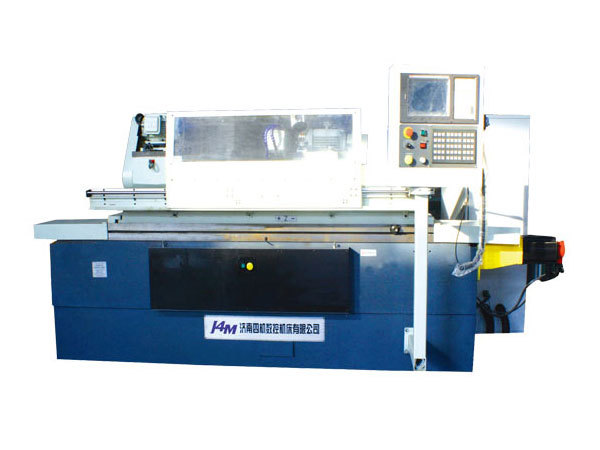

CNC Cylindrical Grinder

This machine tool adopts two-axis numerical control system, built-in PLC, and liquid crystal display. The machine tool adopts a semi-enclosed protective structure

MJK1332×1000/1500/2000

Tel：

+86-0531-88681424

Related Products

Online Message

CNC Cylindrical Grinder

Machine Features：

★This machine adopts two-axis numerical control system, built-in PLC, and liquid crystal display. The machine tool adopts a semi-enclosed protective structure.

The movement of the grinding wheel frame and the worktable is driven by the AC servo motor through the ball screw, and the grinding wheel frame and the worktable are driven by the ball screw.

The feed guide rails are all flat and V guide rails with forced oil supply by hydraulic oil to ensure accurate and sensitive feeding.

★The wheel frame adopts three-piece dynamic pressure bearing structure, which has high rigidity and rotation accuracy.

★The head frame has variable frequency stepless speed regulation.

★The tailstock sleeve has hydraulic telescopic function.

★Equipped with automatic measuring instrument on-line detection to realize closed-loop automatic grinding cycle.

★It can be equipped with end face positioning measuring instrument (special order) to realize axial positioning.

TECHNICAL SPECIFICATIONS

Height of center 180mm

Distance between centers 1020/1520/2020mm

Max.diameter to be ground φ320mm

Max. length to be ground 1000/1500/2000mm

Max. weigth of workpiece 150kg
